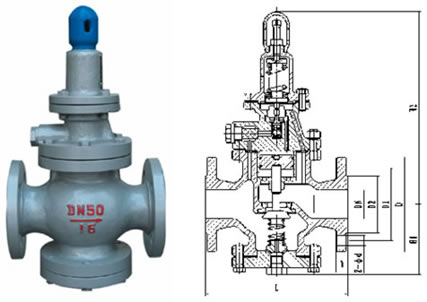

Y43H-16 Y43H-16Q Y43H-16C Y43H-25 |
减压阀 |
PN40~400 |
特点:
减压阀是通过启闭件对流体介质进行节流，将进口压力降至某一个需要的出口压力，并能在进口压力及流量变动时，利用介质本身的能量保持不变的阀门。我厂最新研制的新型减压阀，采用新技术，在进口处加装过滤网:耐压、耐热性能优良，产品适用于各种压力、各种温度的蒸汽、空气和水介质的设备和管路上。
The redudng valve is the valve which can carry out the throttle to liquid media by open and close fittings, lower the inlet pressure to a needed discharge press,i.ue and keep un-charged by enert y of nedia when the inlet pressure and flux changes. The reducing valve newly developed by this plant adopts new technology and ecpai.p filter screen at the entrance place. The valve is featured with prt.ne resistance, heat resis-tance and good performance, which is used for the equipment and pipeline of steam, air and water media with various pres-sure and temperature.
| 主要性能规范：Main technical data | |||||||
| 型号 type |
公称压力 PN Nominal Pressure |
壳体试验压力 /MPa The shell test pressure |
进口参数 Import | 出口压力 Exit pressure P2/MPa |
出口压力偏差 Exit pressure error |
适用介质 Suitable medium |
|
| 温度 /℃ temp |
压力 P1/MPa pressure |
||||||
| Y43H-16 | 16 | 2.4 | <200 | 1.6 | 0.05～1.0 | +-0.05 | 蒸汽 steam |
| 200 | 1.5 | ||||||
| Y43H-16Q | <250 | 1.6 | |||||
| 250 | 1.5 | ||||||
| Y43H-16C | - | - | |||||
| Y43H-25 | 25 | 3.75 | 200 | 2.5 | 0.05～1.6 | +-0.07 | |
| 250 | 2.3 | ||||||
| 350 | 1.8 | ||||||
| 主要零件材料：Materials for main parts | ||||||
| DN | 零件名称 The name of part | |||||
| 阀体、上阀盖、下阀盖 Body、bonnet |
主副阀瓣、主副阀座、活塞 Host vice-value lobe,Host vice-value seat,Piston | 主副弹簧 main spring |
调节弹簧 Regulation spring |
膜片 Diaphragm |
活塞环 Cast steel |
|
| Y43H-16 | HT200 | 不锈钢 Stainless steel |
铬钒钢 Mo |
硅锰钢 Si mn steel |
不锈钢 Stainless steel |
合金耐磨铸铁 |
| Y43H-16Q | QT450-10 | |||||
| Y43H-16C Y43H-25 |
WCB | |||||
