Q41F Q341F Q341F Q941F MQ341F MQ941F |
浮动球球阀 |
PN16~100 DN15~400 |

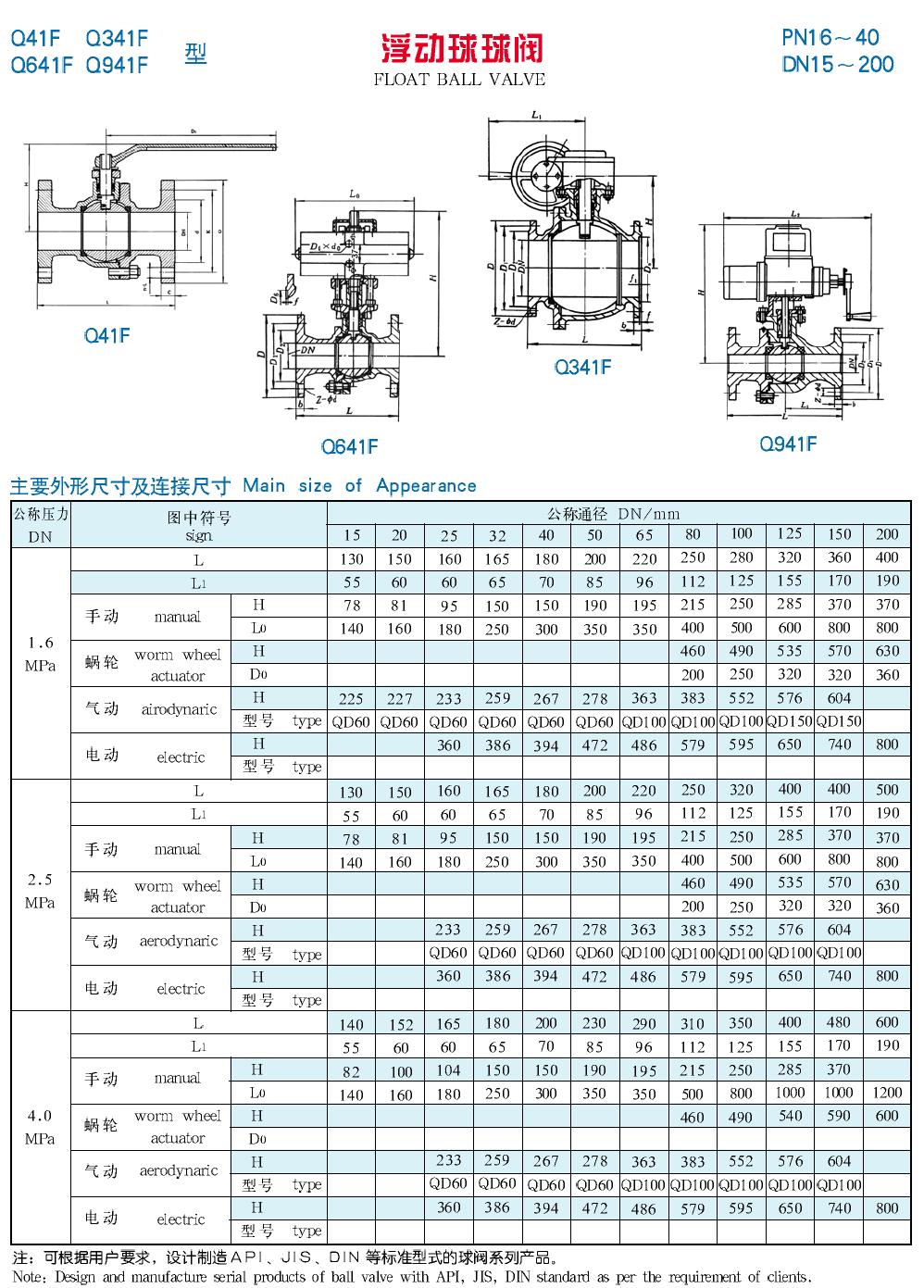

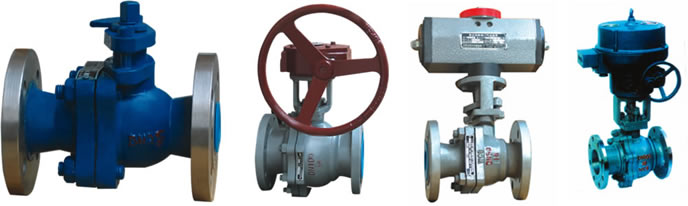

手动浮动球球阀、气动浮动球球阀、 电动浮动球球阀、 涡轮浮动球球阀
| 结构特点 | structure feature: |
| 1、全通径结构，流体阻力小，开关迅速、方便。 2、可靠的阀座密封.采用双斜面弹性密封圈、降低了摩擦系数。减少铡乍扭矩，保证低压、高压有可靠的密封.如图1。 3、当介质的冲刷力较大时.特别设计的阀座防冲刷结构能有效防止介质的冲刷,bbl呆使用寿命.如图2。 4、可靠的阀个F&封.阀杆倒密封结构，可防止阀杆脱出和保护填料不受破坏。 5、球阀内通道光滑，可输送粘性介质、浆液粉尘及固体颗粒。 |
1.All diameter stnuctuue, seal fluid iEsistanoe, rapid andeasy open and close. 2. Reliable valve seat seal adopts double-bevel elastic sealing, which lowers the abrasive coefficient, obaease the operation torque, ensure reliable low and high pressuue seal. 3. When the scouring force of media is larger, the anyi-scouring structure speaally designed for valve seat can efficiently prevent the scauing of media and ermure the use life. 4. Reliable valve handle seal and back seal structure of valve handle can prevent the valve handle from deviation and protect the filling from damafe. 5. The smooth channel in the ball valve can transport theglutinous media, serous dust and solid particle. |
| 主要性能规范：Main Technical Data | |||||
| 公称压力 MPa nominal pressure | 1.6 | 2.5 | 4.0 | 6.4 | |
| 试验压力 MPa testing pressure |
壳体强度 body strength | 2.4 | 3.75 | 6.0 | 9.6 |
| 液体密封 liquid seal | 1.76 | 2.75 | 4.4 | 7.04 | |
| 气体密封 gas seat test | 0.6 | 0.6 | 0.6 | 0 .6 | |
| 主要零部件材料：Material of main parts | ||||||
| 法兰密封面 flange seal |
公称压力PN MPa |
产品型号 type |
||||
| 突面 Convex noodles |
1.6 | Q4lF-16 | Q4lF-1Q | Q41F-16C | Q4lF-16P | Q4lF-16R |
| 2.5 | Q41F-25Q | Q41F-25 | Q41F-25P | Q41F-25R | ||
| 凸凹面 roughness |
4.0 | Q41F-40 | Q41F-4DP | Q41F-40R | ||
| 零 件 名 称 name of parts | 材 料 牌 号 material | |||||
| 主要零件材料 Main parts material |
阀体 body | 甘几田 | QT450-10 | WCB | CF8 | CFSM |
| 球体 ball | 2Cr13 | 304 | 316 | |||
| 阀杆 stem | 1Cfl3 | 304 | 316 | |||
| 密封圈 sealing ring | 增强聚四氟乙烯 PTFE | 增强聚四氟乙烯 PTEE | ||||
| 填料 packing | 柔性石墨 flexible graphite | 聚四氟乙烯 PTF4 | ||||
| 适用工况 suitable circs |
适用介质 applicable medium | 水、蒸汽、油品，煤气等可燃气体 water,steam,oil etc |
弱腐性介质 |
腐蚀性介质 corrosive gas |
||
| 适用温度 applicable temp | ≤150℃ | ≤150℃ | ||||
| 煤气专用球阀 Coal gas appropriation ball valve | 型号前带 ’M’ 为煤气专用球阀 The model number take ’M’ as coal gas appropriation ball valve |
|||||
