RJ41F-16C、25、 40型 RJ41N-16C、25、 40型

燃气截止阀RJ41

PN10~40

DN15~300

沈阳郑高阀门有限公司燃气截止阀RJ41NF

一、燃气截止阀RJ41F RJ41N结构特点

RJ41F型结构特点

1、采用弹性PTEE作为动密封自补偿填料，具有自密封性能。
2、大径密封圈或倒密封结构，使别胞封维护安全可靠。
3、设置阀杆防尘圈，保护阀门内部部件不受外部环境侵蚀。
4、阀体为桶形结构，强度高，外形美观。密封副采用防火结构。
5、非强制动密封结构，启闭扭矩小，手轮操作平稳。
1.Adopt elastic FTEE as dynamical saline

seif-cmpensating filling, which possrss

self-sealing performance.
2. Large diameter seal ring or back seal

structure can ansure the safety and

reliability of dynamical sealing.
3. Equipped with dustproof ring of valve

handle in order to protect the interior

parts of valve from erosion of exterior

arvironmart.
4. The valve body adopts barrel stnrcture

and possesses high intensity and beautiful

appeararue. The sealed auxiliary adopts

the fireproof structure.
5. Non-forcible dynamical sealing stnchue

posers small open and close torque. The

handwheel can be smoothly operated.

RJ41N型结构特点

1、该阀专为石油液化气的管路成装置设计.
2、密封副采用尼龙1010对不锈钢，密封可靠。可靠的上密封装置严密保护填料，绝无外漏。
3、采用防火结构，即使软密封材料烧损，金属密封仍能起到作用。
1.The valve is specially designed for the pipeline

or equipment of petroleum and liquefied gas.
2.The sealed auxiliary adopts nylon 1010 stainless

steel. The sealing is reliable. Reliable upper

sealing equipment can strictly protect the filling

and absolutely avoid the leakage.
3.Adopts the fireproof structure.Even if the soft

sealing material is burned,the metal seal still

takes effect.

二、燃气截止阀RJ41F RJ41N主要性能规范

主要性能规范 The technical data
型号
type		 试验压力 MPa

适用介质
suitable medium

适用温度
suitable temp
壳体shell test 液密封seat test 气密封gas seal test
RJ41F-25 3.8 2.75 2.5MPa压缩空气 石油液化气、煤气、 天然气、氨气等 -40℃ ～ +80℃
RJ41F-40 6.0 4.4 4.0MPa压缩空气

三、燃气截止阀RJ41F RJ41N主要零部件材料

主要零部件材料 Material of main parts
零件名称
name of part 		阀体、阀盖
Bonnet		 密封副材料
seat test material 		阀杆
disc		 填料
packing
型号
type		 RJ41N-25
RJ41N-40		 WCB 尼龙、PTFE+、1Cr18Ni9Ti 2Cr13 PTFE

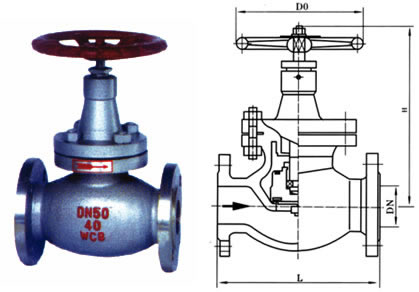

二、燃气截止阀RJ41F RJ41N主要外形尺寸及
主要外形尺寸及连接尺寸 Main size of Apperance
公称压力
MPa		 图中符
sign		 公称通径 DN/mm
20 25 32 40 50 65 80 100 150 200
2.5


4.0		 L 150 160 180 200 230 290 310 350 480 600
D0 140 140 180 200 240 280 320 360 400 500
H 262 280 290 33O 350 400 430 465 610 722
H1 275 295 308 355 380 420 460 506 692 830
