橡胶闸板闸阀 DIN 3352 PN10/PN16

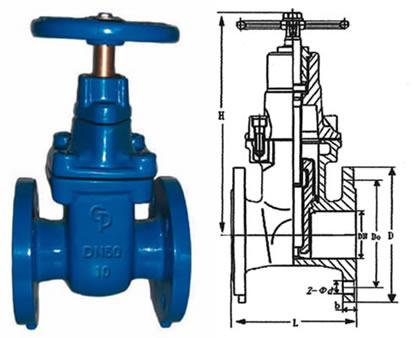

一、橡胶闸板闸阀介绍
|
PN10法兰按 DIN2532标准 |
PN10 Flange to DIN2532 |
二、橡胶闸板闸阀材质表
|
材质表：Material list |
|
|
部件 Part |
材质(PN10/PN16) Material |
|
阀体 Body |
灰铸铁/球墨铸铁 Grey east Iron/ductile Iron |
|
阀盖 Bonnet |
灰铸铁/球墨铸铁 Grey east Iron/ductile Iron |
|
压盖 Cap |
灰铸铁/球墨铸铁 Grey east Iron/ductile Iron |
|
阀杆 Stem |
不锈钢 X20Gr13 stainless steel |
|
闸板 Wedge |
灰铸铁/球墨铸铁 Grey east Iron/ductile Iron |
|
闸板螺母 Wedge nut |
黄铜 CuZn40Pb2 Brass |
三、橡胶闸板闸阀连接尺寸以及外形尺寸
|
size |
L(F4) |
L(F5) |
PN10 |
PN16 |
H |
||||||
|
D |
D0 |
b |
z-φd |
D |
D0 |
b |
z-φd |
||||
|
40mm |
14O |
240 |
150 |
110 |
18 |
4-18 |
150 |
110 |
18 |
4-18 |
248 |
|
50mm |
150 |
250 |
l65 |
125 |
20 |
4-18 |
l65 |
l25 |
20 |
4-18 |
263 |
|
65mm |
170 |
270 |
185 |
145 |
20 |
4-18 |
185 |
145 |
20 |
4-18 |
292 |
|
80mm |
180 |
280 |
200 |
160 |
22 |
4-18 |
200 |
l60 |
22 |
8-18 |
32O |
|
100mm |
190 |
300 |
220 |
180 |
22 |
8-18 |
220 |
180 |
24 |
8-18 |
366 |
|
125mm |
200 |
325 |
250 |
210 |
24 |
8-18 |
250 |
210 |
26 |
8-18 |
405 |
|
150mm |
210 |
350 |
285 |
240 |
24 |
8-23 |
285 |
240 |
26 |
8-23 |
443 |
|
200mm |
230 |
400 |
340 |
295 |
26 |
8-23 |
340 |
295 |
30 |
12-23 |
515 |
|
250mm |
250 |
450 |
395 |
350 |
28 |
12-23 |
405 |
355 |
32 |
12-23 |
600 |
|
300mm |
270 |
500 |
445 |
400 |
28 |
12-23 |
460 |
410 |
32 |
12-23 |
730 |
