Z45X-10、16 Z45X-10、16 橡胶闸板闸阀Z45X PN10、PN16 DN 50~600
结构特点:
1、阀体采用精密铸造，圆滑式底座(阀座)与包胶阐板紧闭密合达到无泄漏，无积物，流道畅通，启闭轻巧灵活。
2、阀体内腔涂以无毒环氧树脂，闸板内外表面均以橡胶完全包覆，对水质无污
染，环保节能。
3、轴封采用多道 "0"型密封圈密封，保证阀门绝无泄漏。
4、可广泛使用于自来水、污水、建筑、石油、化工、食品、医药、轻纺、电力、冶金、能源等系统洲本管道上作调节和截流装置使用。
5、可替代原Z44T-10, Z45T-10闸阀产品，属环保型节能产品。
Structure characteristic:
1.Valve body adopts the precise founding method to make the smooth foundation (valve seat) and
encapsulate flashboard close waling together, which can reach no leakage, no sedimentation, smooth
fluid channel, easy and flexible open and close.
2.The valve cavity is painted with innoxious epoxy and the interior and exterior surface of flashboard
are fully packed with rubber, which have no pollution to water and can reach environmental protection
and energy saving.
3.Shaft seal is sealed with multi-channel type seal ring, which absolutely ensures no leakage of valve.
4.Can be widely used in the systematic fluid pipeline such as water supply, senate. buildings，petroleum, chemical industry, foodstuffs, medicine,light industry textile, power, metallurgy, energy,
etc as the adjustment and fluid dam equipment.
5.Can substitute the former Z44T-10, Z45T-10 gate valve products. It belongs to
the product with environmental protection and energy saving.
|
主要性能范围: Main Technical data |
|||||
|
型号 Type |
试验压力 Testing pressure |
适用介质 |
适用温度 temperature |
||
|
壳体 Shell |
液密封 Seat test |
||||
|
Z44X-10 |
Z45X-10 |
1.5 |
1.1 |
水，污水等 |
≤60℃ |
|
Z44X-16 |
Z45X-16 |
2.4 |
1.76 |
||
|

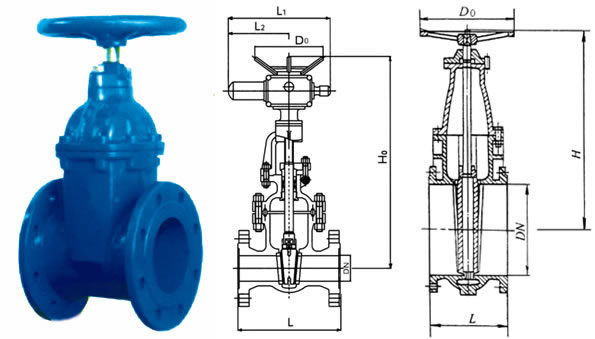

主要外形尺寸及连接尺寸：Main size of appearance |
|||||||||||||||
|
公称 压力 pressure |
图中 符号 Sign |
公 称 通 径 DN(mm) |
|||||||||||||
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
||
|
1.0 |
L |
180 |
195 |
210 |
230 |
255 |
280 |
330 |
380 |
420 |
450 |
480 |
510 |
540 |
600 |
|
D0 |
200 |
200 |
250 |
250 |
320 |
320 |
360 |
400 |
400 |
400 |
500 |
500 |
720 |
720 |
|
|
H |
275 |
305 |
340 |
380 |
430 |
500 |
600 |
710 |
770 |
830 |
930 |
|
|
|
|
|
H1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
重量 |
17 |
23 |
32 |
40 |
59 |
89 |
100 |
142 |
190 |
|
|
|
|
|
|
|
1.6 |
L |
180 |
195 |
210 |
230 |
255 |
280 |
330 |
380 |
420 |
450 |
480 |
510 |
540 |
600 |
|
D0 |
200 |
200 |
250 |
250 |
320 |
320 |
360 |
400 |
400 |
400 |
500 |
500 |
720 |
720 |
|
|
H |
275 |
305 |
340 |
380 |
430 |
500 |
600 |
710 |
770 |
830 |
930 |
|
|
|
|
|
H1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
重量 |
18.5 |
24.5 |
34 |
42 |
62 |
92 |
100 |
150 |
200 |
|
|
|
|
|
|
